Data Segmentation

Data Segmentation#

Exercise 1: Create an App Segment#

  1. Go to Segments, create a new Segment

Variable DQL query for App

fetch dt.entity.cloud_application_namespace
| fields application_name = entity.name, tag = concat("app:", entity.name)

Segment Filters

App: k8s.namespace.name = $application_name

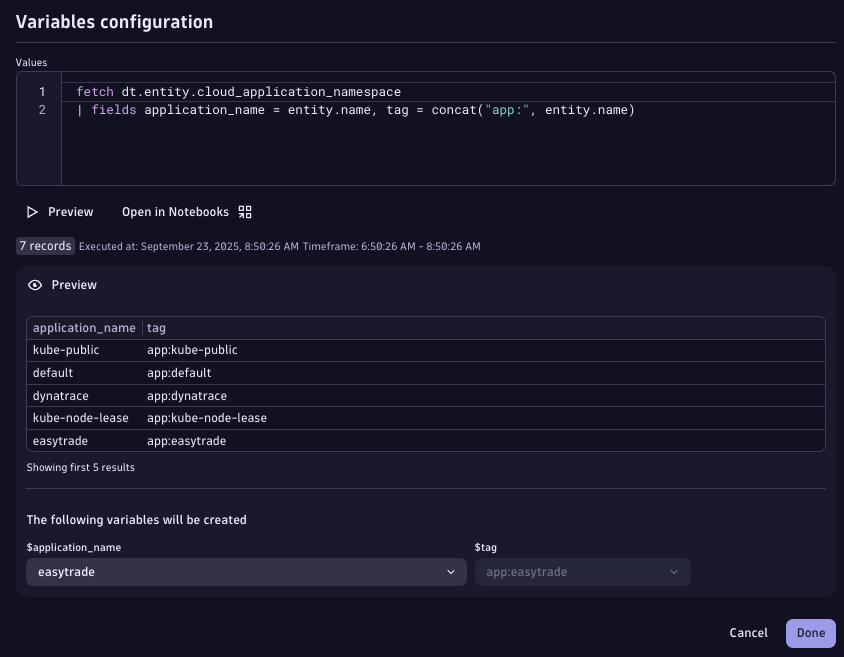

Variable configuration for App segment

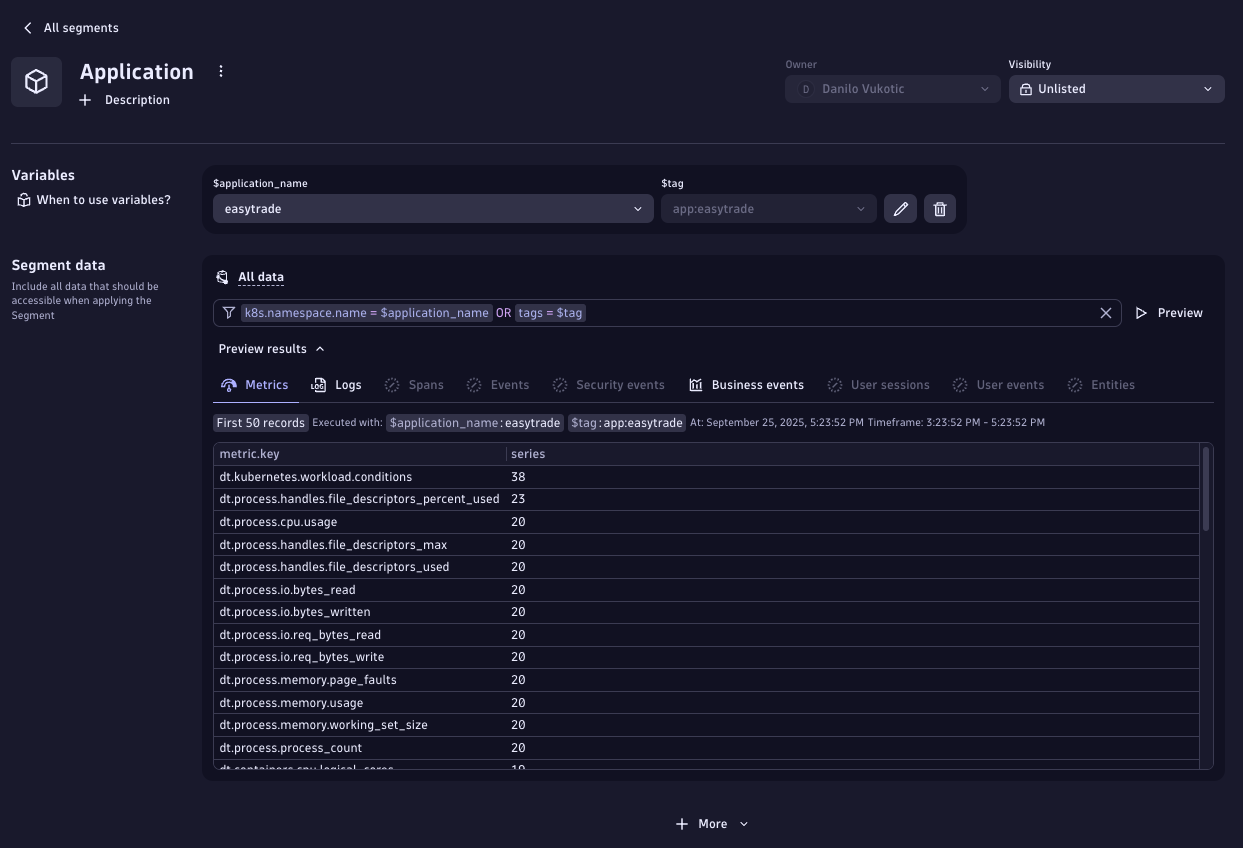

App segment configuration preview

Exercise 2: Create a Stage Segment#

Extract stage from Host Group names and use it to filter all data.

  1. Go to Settings > Environment Segmentation > Segments
  2. Create a Platform Segment with provided instructions.
  3. Extract all possible values for Stage using the below DQL
    • fetch dt.entity.host_group| parse `entity.name`, """LD:platform '_' LD:app '_' LD:stage"""| dedup platform| fields platform
  4. Use dt.host_group.id = *$stage to filter all datapoints within the Host-Group

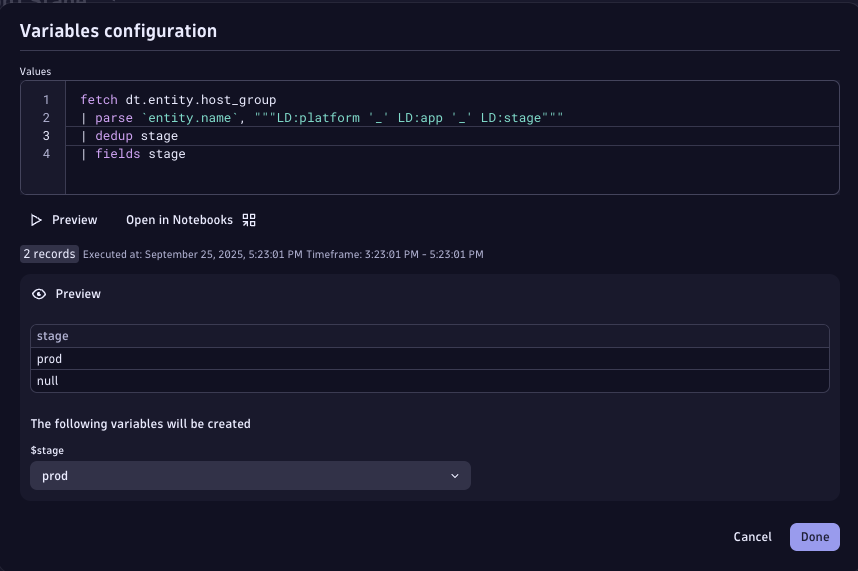

Variable configuration for Stage segment

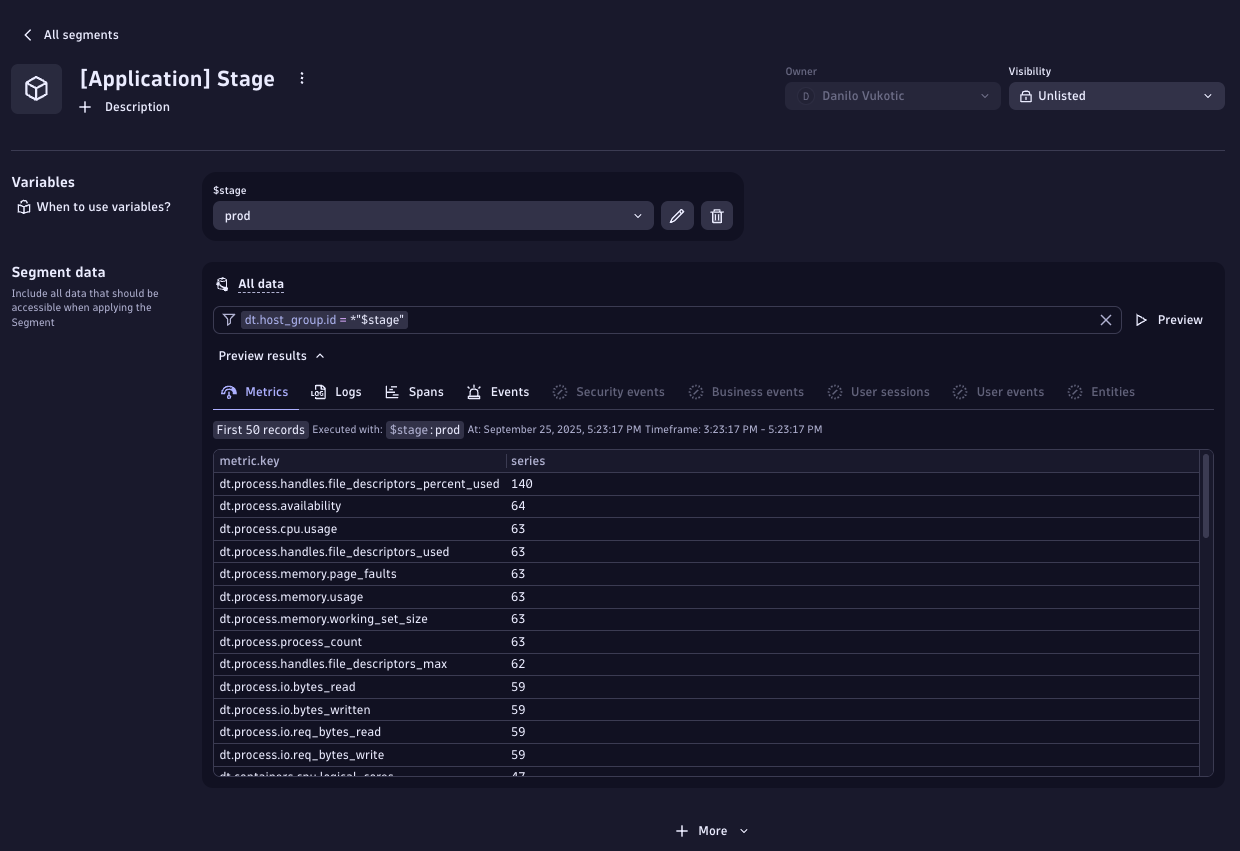

Stage segment configuration preview

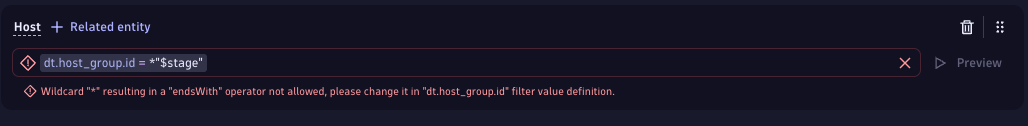

Please note that filters such as dt.host_group.id = *$stage do not work for classic entities. You might get the following error if you try to apply the same filter to a dt.entity.host entity type - "Wildcard "*" resulting in a "startsWith" operator not allowed, please change it in "dt.host_group.id" filter value definition.". Please see below.

Nevertheless, this should work for smartscape 2.0 entities in their respective screens. Segments preview doesn't work at the moment for any entity but k8s entities should automatically be visible within the Kubernetes app. More information on how different classic and smartscape on grail entities are can be found here.

Exercise 3: Validate Segments with Smartscape entities#

Use the K8s app to prove that App segment works with K8s entities.

  1. Opent the Kubernetes App
  2. Go to the Namespaces tab
  3. Apply the Application segment

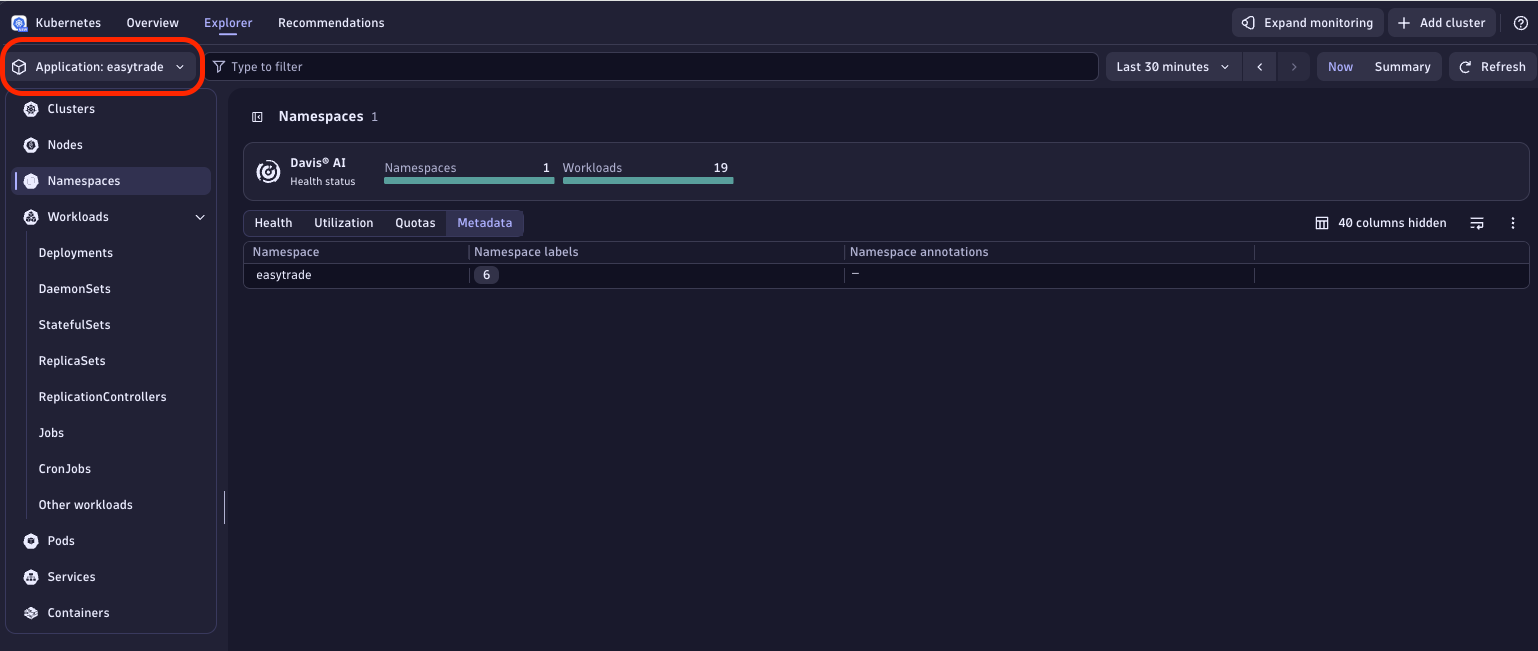

Kubernetes entities in Grail

Exercise 4: Validate Segments with Logs#

Use Segments to reduce noise in log queries.

  1. Query logs without any Segment = more than 10k+ records.
  2. Apply App Segment for easytrade.
  3. Observe reduction in results.

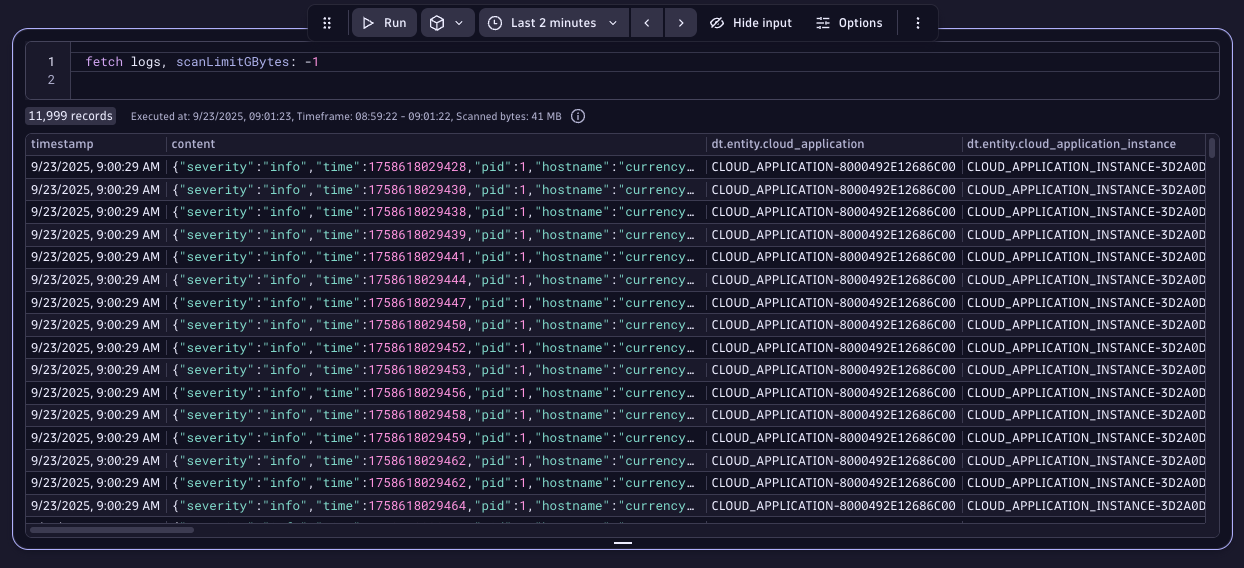

Logs without Segment

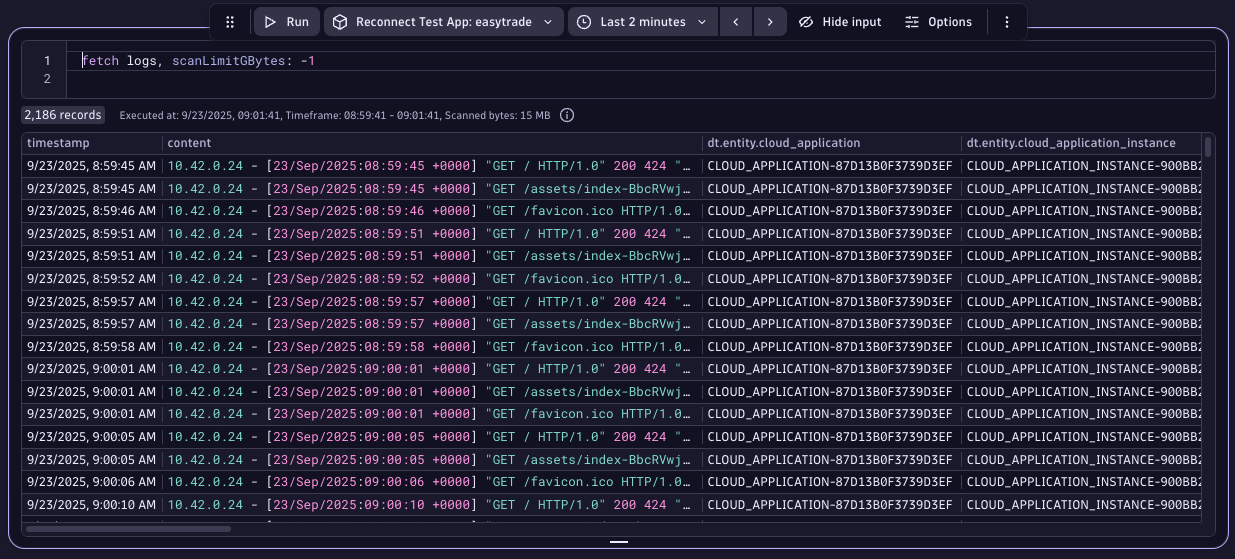

Logs with App Segment

Exercise 5: Validate Segments with Traces#

Filter Distributed Traces using Segments.

  1. Open Distributed Traces and filter for failed requests.
  2. Apply App segment (easytrade).
  3. Observe filtered trace results.

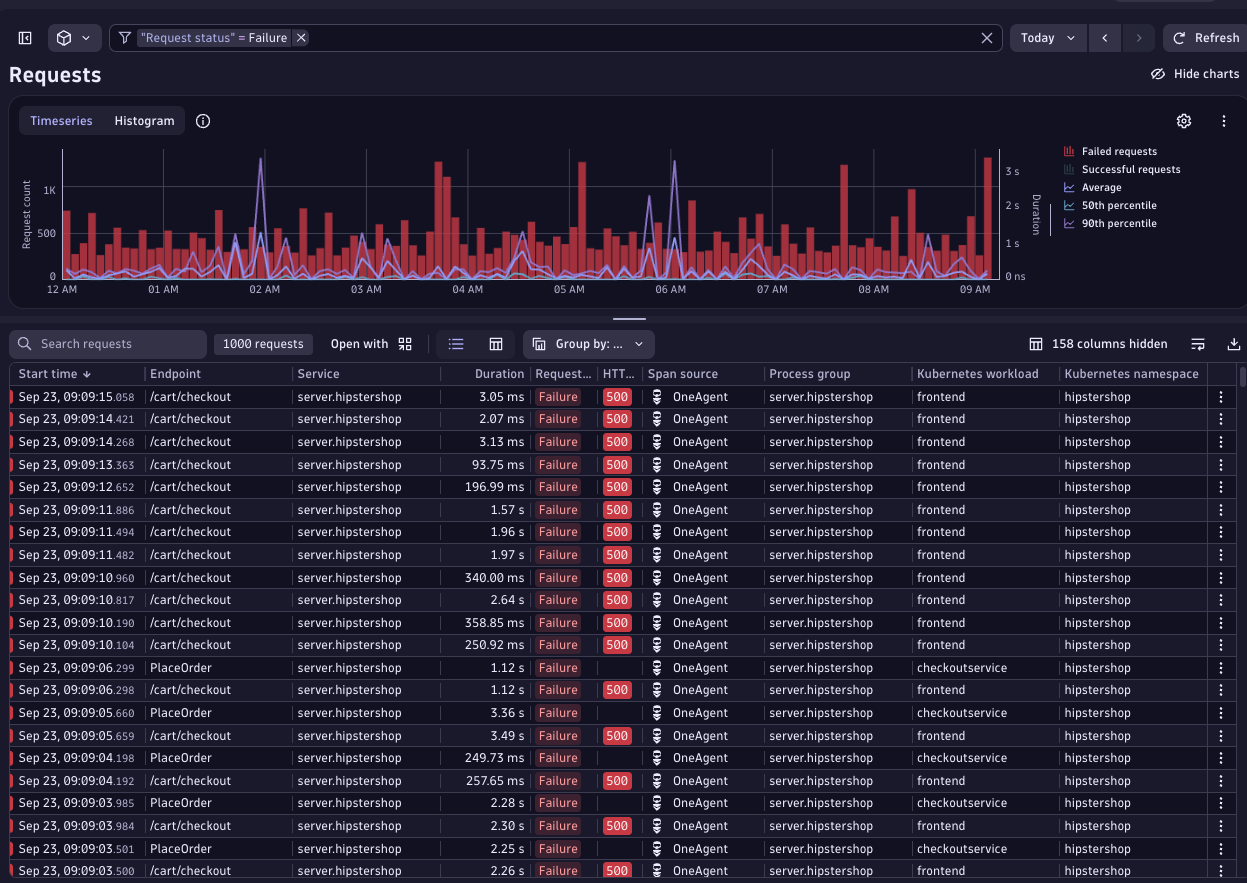

Failed requests

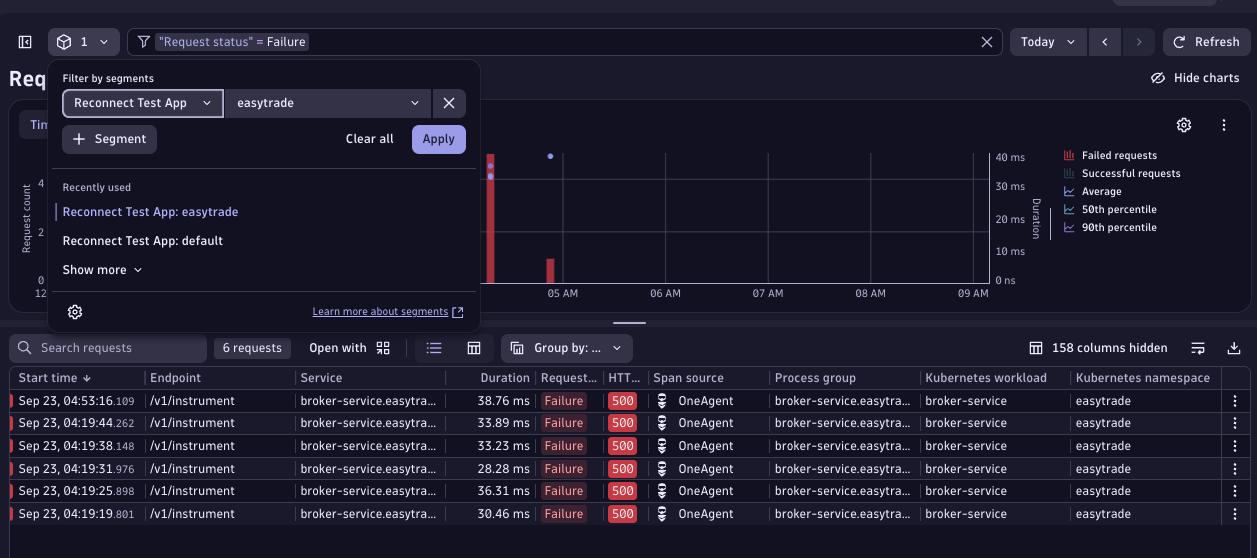

Filtered traces

Exercise 6: Validate Segments with Metrics#

Use Segments to scope dashboard tiles.

  1. Create a tile for k8s container CPU usage across workloads.
  2. Apply App segment (easytrade) to the tile.
  3. Observe scoped metric results.

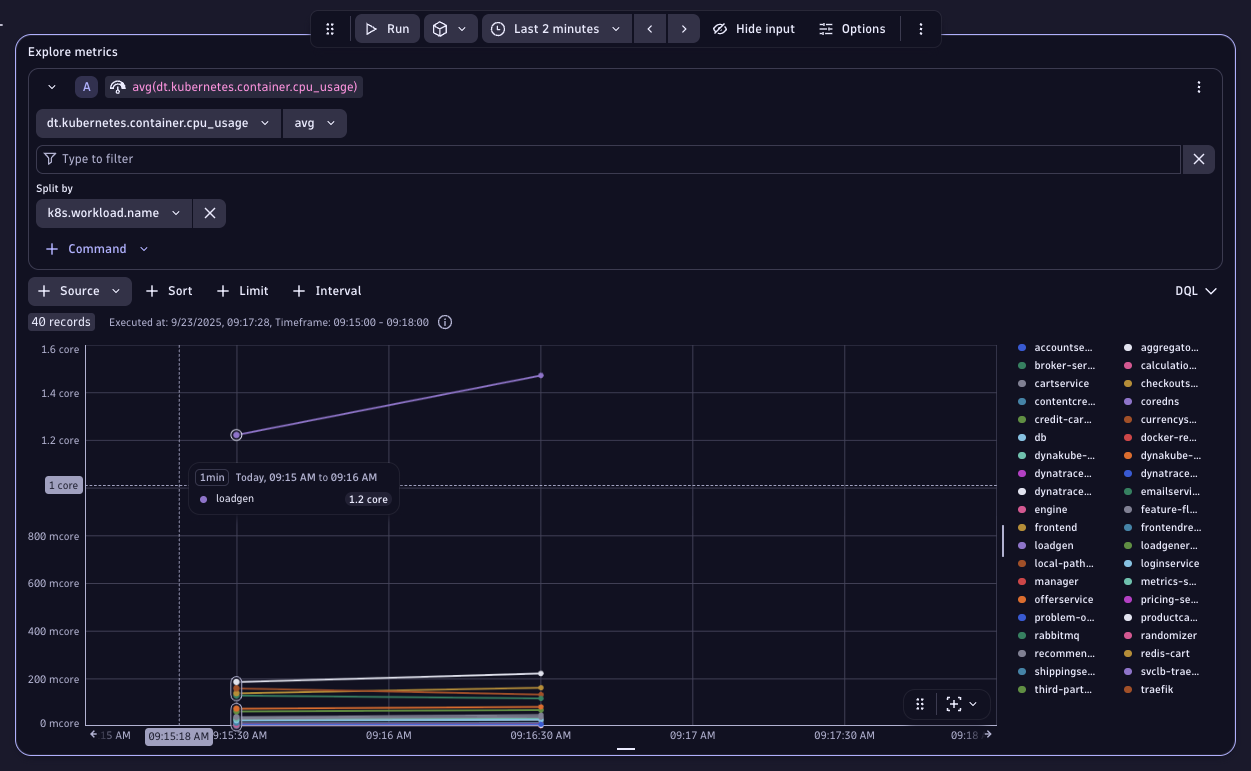

Global notebook segment applied

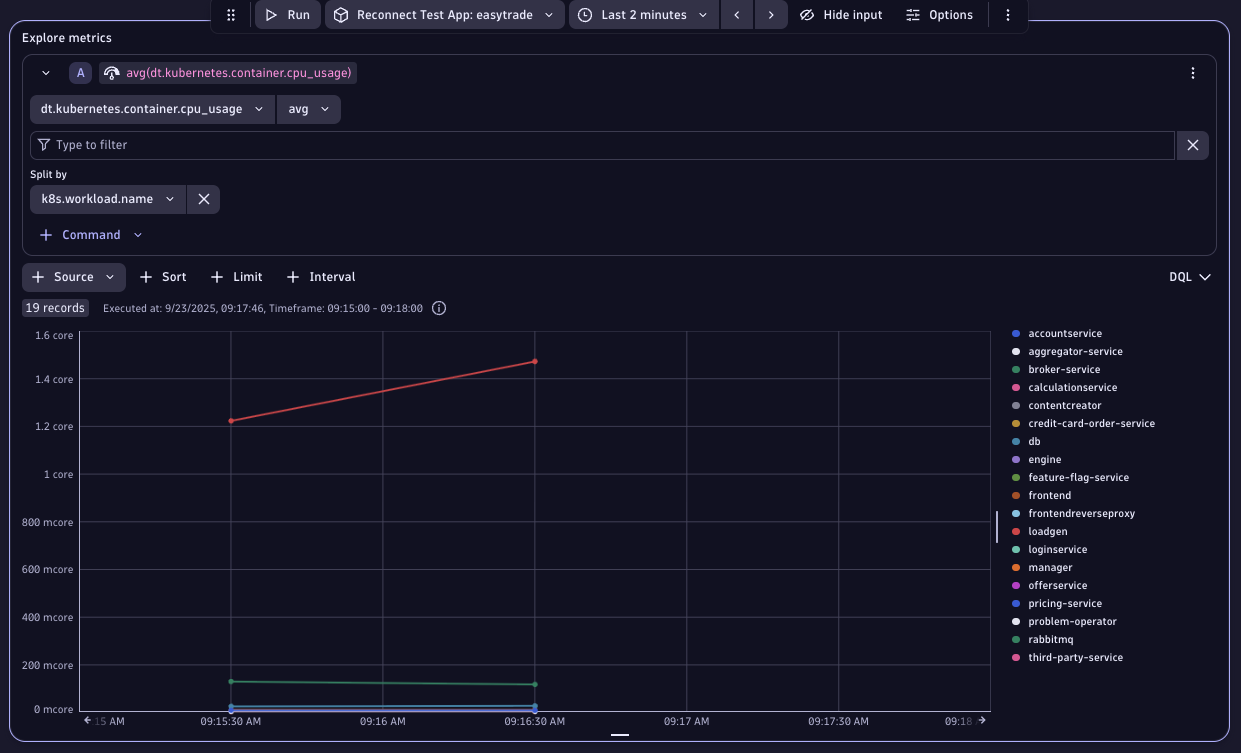

Final dashboard view
