Metadata Enrichment

🎯 Lab Goals

• Understand Primary Grail Fields: what they are and why they’re ideal for tenant-wide controls (IAM, Partitioning, Segmentation, Cost Control).
• Assess current metadata coverage: with a provided Enrichment Overview notebook to see presence of dt.security_context, dt.cost.costcenter, dt.cost.product, dt.host_group.id.
• Configure K8s-based enrichment and confirm mutated pods carry new metadata.
• Handle exceptions (pod-level/workload granularity)

🧪 Exercises

Understanding Primary Grail Fields

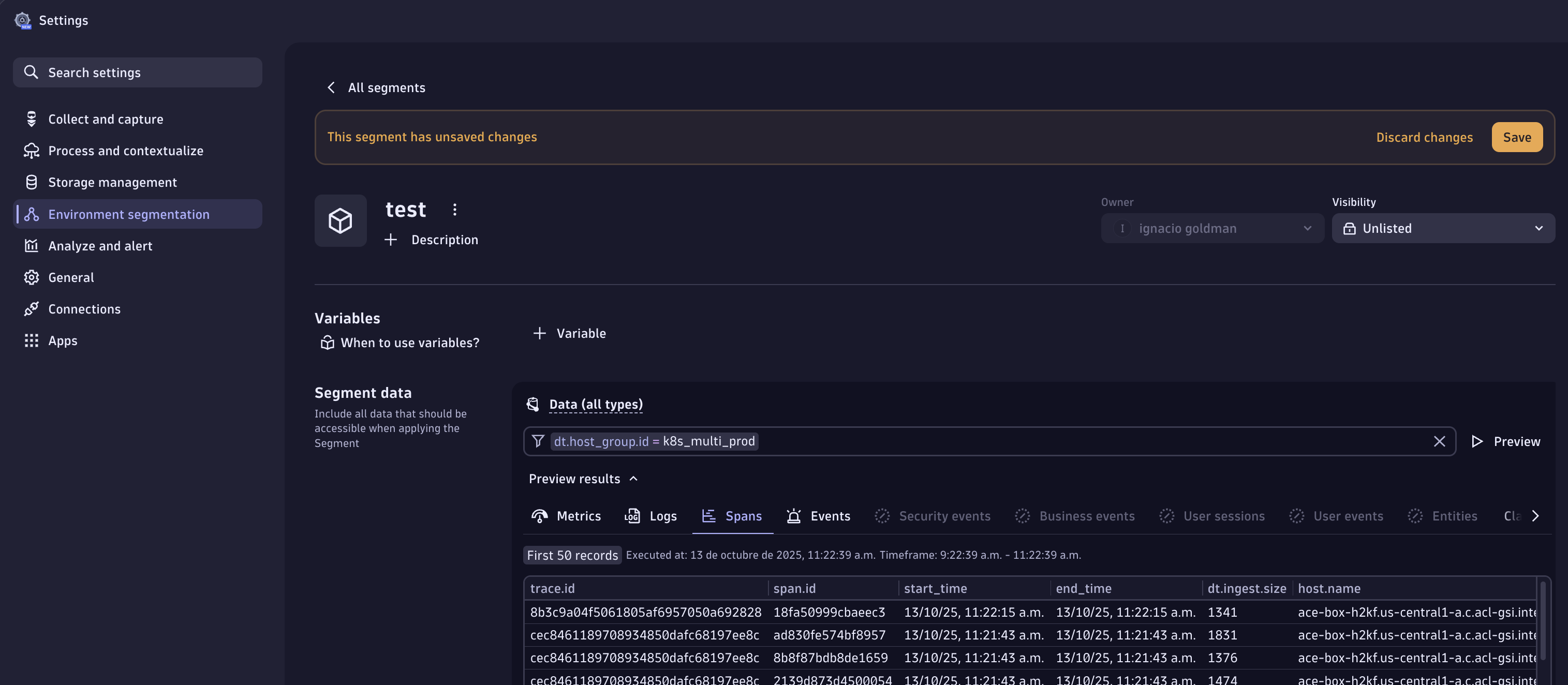

1. In Segments, create a segment with dt.host_group.id. Observe how the Primary Grail Field propagates across all datapoints (metrics, logs, spans, events).



   Note

   Entities will appear in Segments with Smartscape 2.0 (Planned availability: January 2026). Until then, use Management Zones for entities.

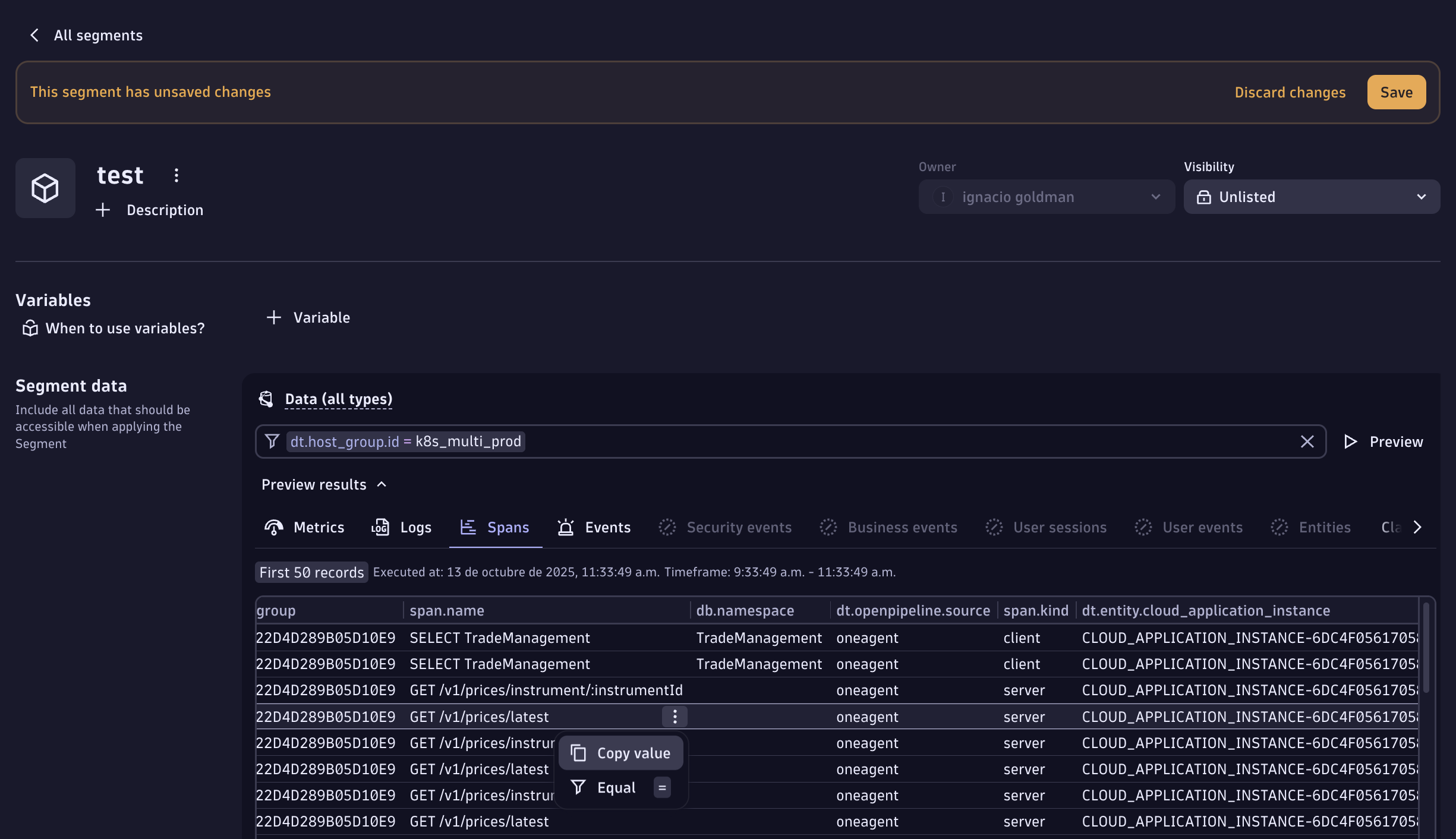

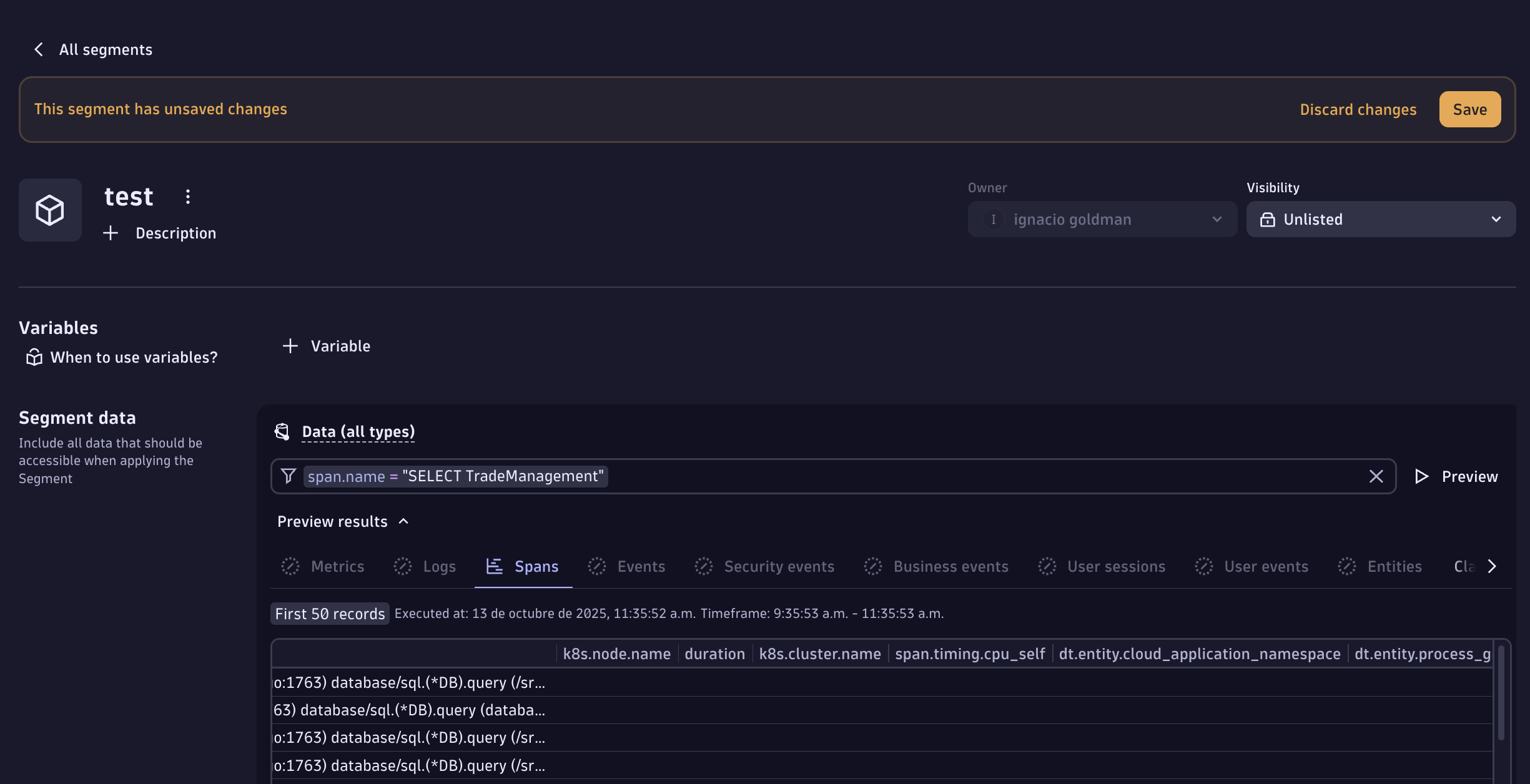

2. Still in the segment, copy a span-specific attribute (e.g., span.name).



3. Run the segment again, filtering where span.name equals the value you copied.



   Success

   Primary Grail Field propagates across every signal, unlike other attributes, making it ideal for tenant-wide configurations (Data Access, Partitioning, Segmentation, Cost Control).

   In 3rd-Gen, each datapoint is treated independently, offering much greater flexibility in how data is: Grouped (via Buckets), Filtered (Segments), Secured (Access Control / IAM), Allocated (for cost tracking, DPS). Every signal, such as logs, spans, traces & metrics, should be enriched with the correspondant metadata. Entities are treated in a similar way to any other signal type.

   To meet the Slice & Dice requirements (remember the table provided during the previous exercise), we must enrich every signal (spans, logs, metrics, events) with:

   • dt.security_context = easytrade
   • dt.cost.costcenter = easytrade
   • dt.cost.product = easytrade

   This makes the metadata consistent across signals, so you can cleanly apply IAM boundaries, Cost Allocation, Buckets, and Segmentation based on those fields.

Enriching our K8s Cluster

How?

Enrichment varies by technology. For the Easytrade team, the stack is Kubernetes on GCP.

• See the D1 CoE guide per technology: Enrichment — Technologies & Entities.
• In this lab, we’ll focus on Kubernetes enrichment: Enrichment — Kubernetes

Enrichment Coverage Analysis

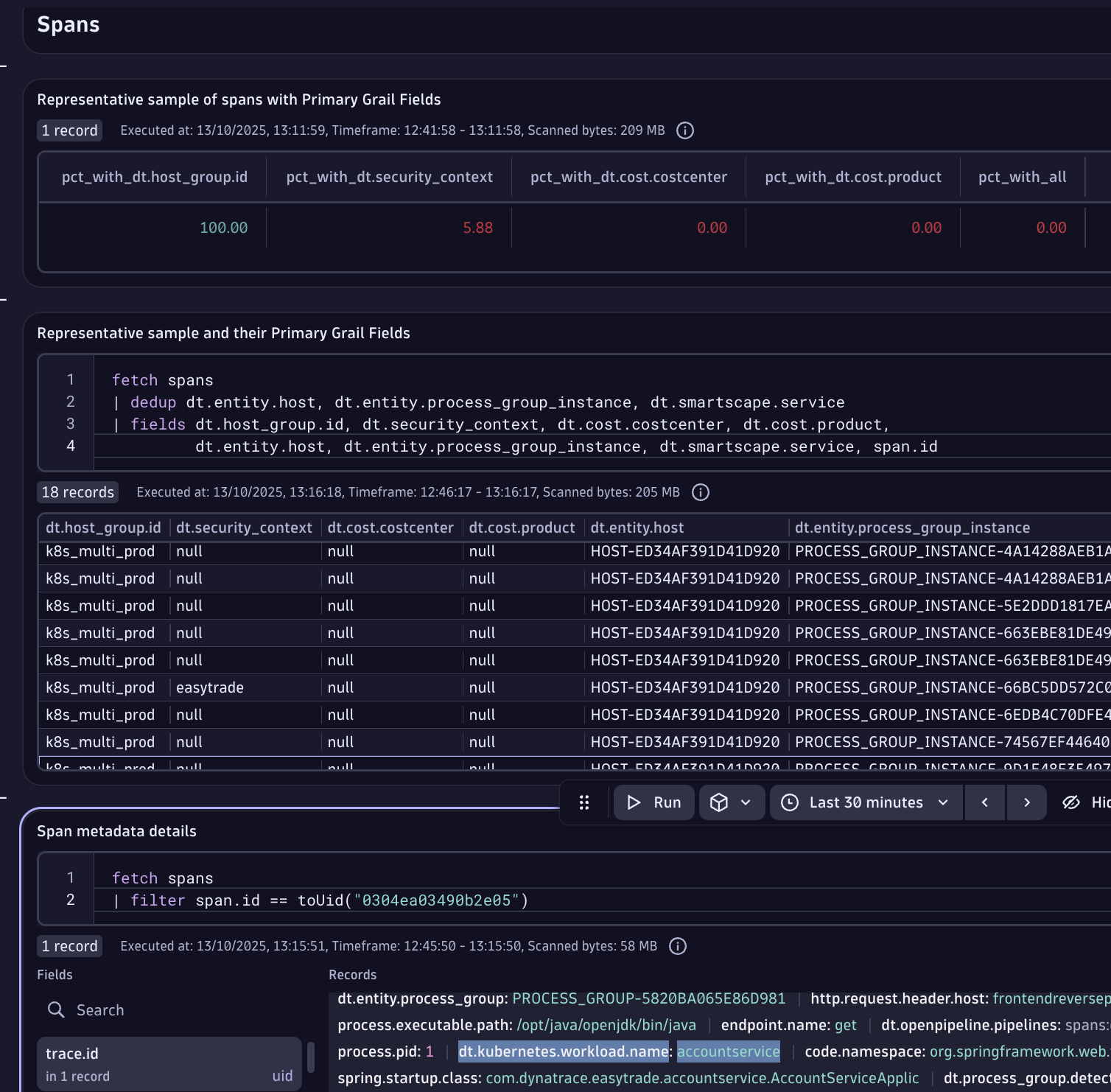

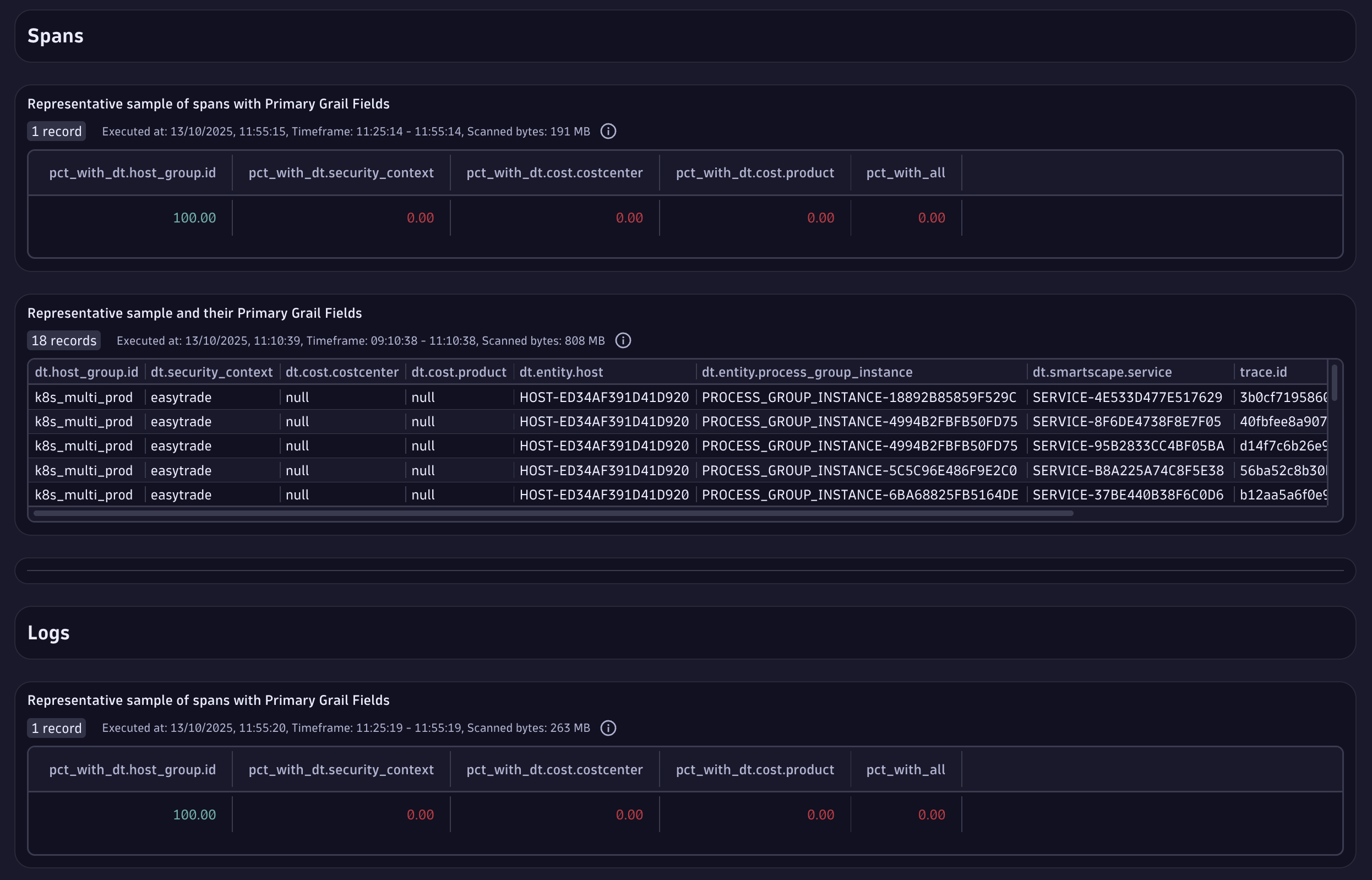

1. Copy the Enrichment Overview Notebook to your tenant, re-run the queries, and review your customer’s status.



   This notebook helps you and the customer quickly assess enrichment coverage (0–100%). Aim for 100%, meaning every datapoint is enriched with meaningful metadata for downstream configuration.

   In our current data, dt.host_group.id is present (legacy Classic usage), but dt.security_context, dt.cost.costcenter, and dt.cost.product are missing.

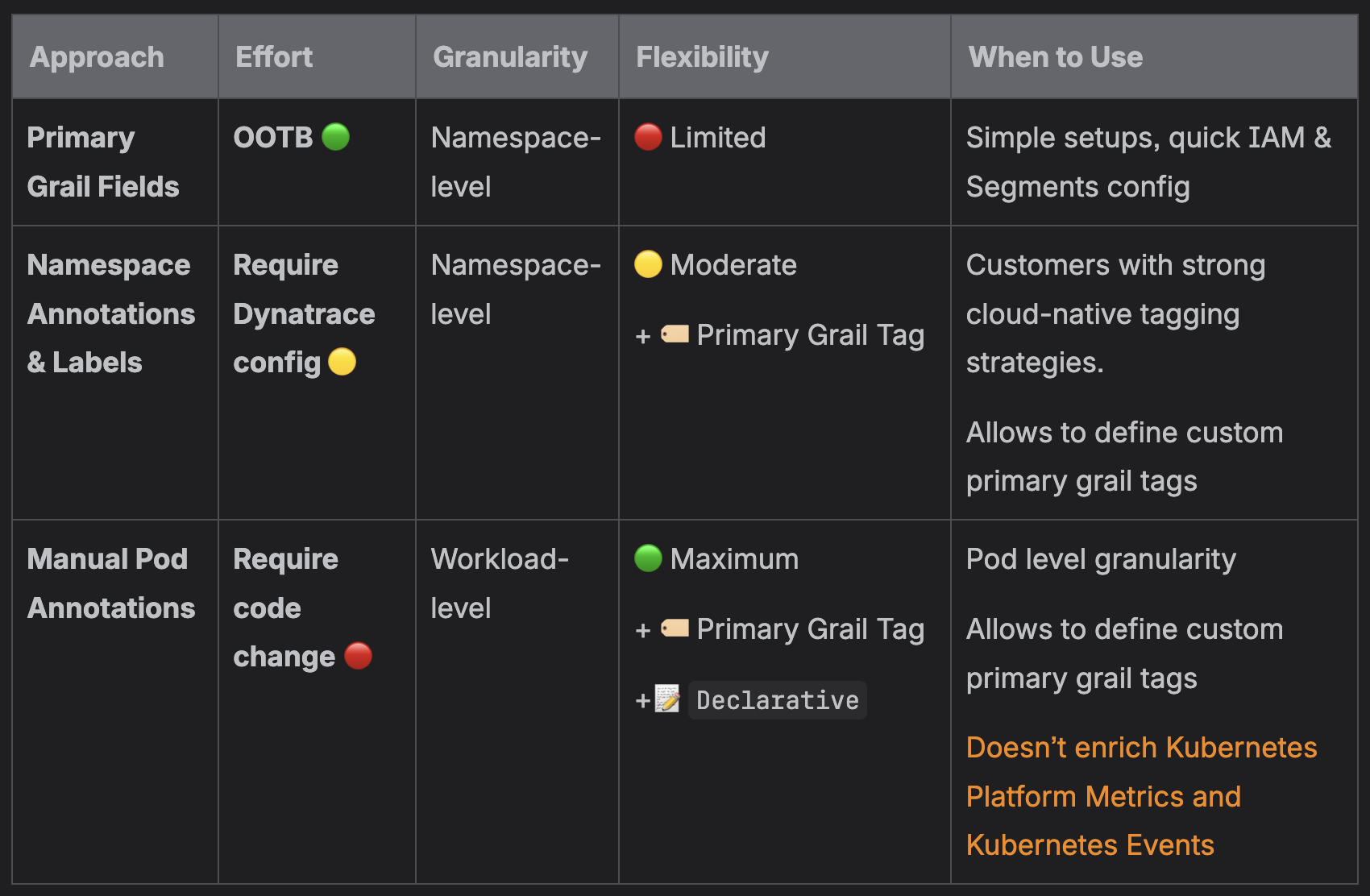

   As outlined in the K8s Enrichment and K8s Telemetry Enrichment DT Docs best practices here are several approaches you could execute:



[Approach 1] Primary Grail Fields

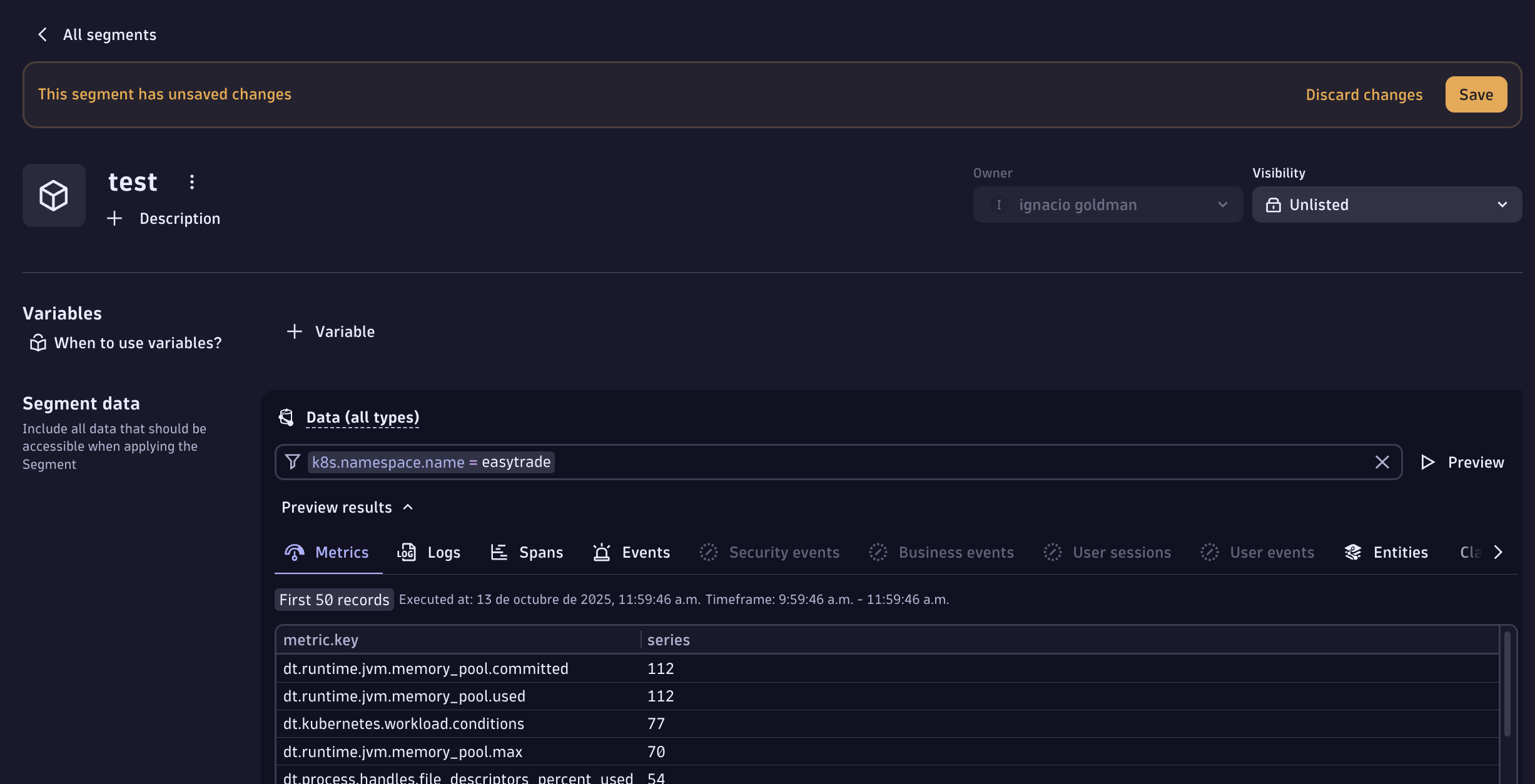

1. Open a Segment and use the namespace to retrieve all datapoints.

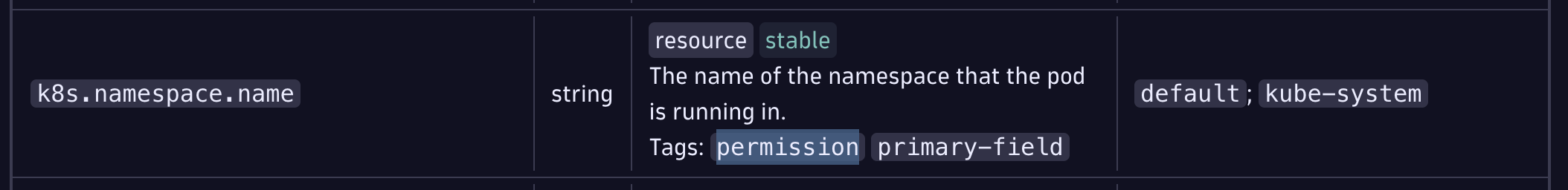

   For a quick win, you can use the namespace directly as the Primary Grail Field. You can also use k8s.namespace.name in your IAM boundary configuration.



[Approach 2] Cloud-native approach

We’ll rely on namespace labels/annotations, a common way customers organize cloud-native environments. With this approach, the customer has more flexibility to adjust dt.security_context, dt.cost.costcenter, dt.cost.product, based on their standards

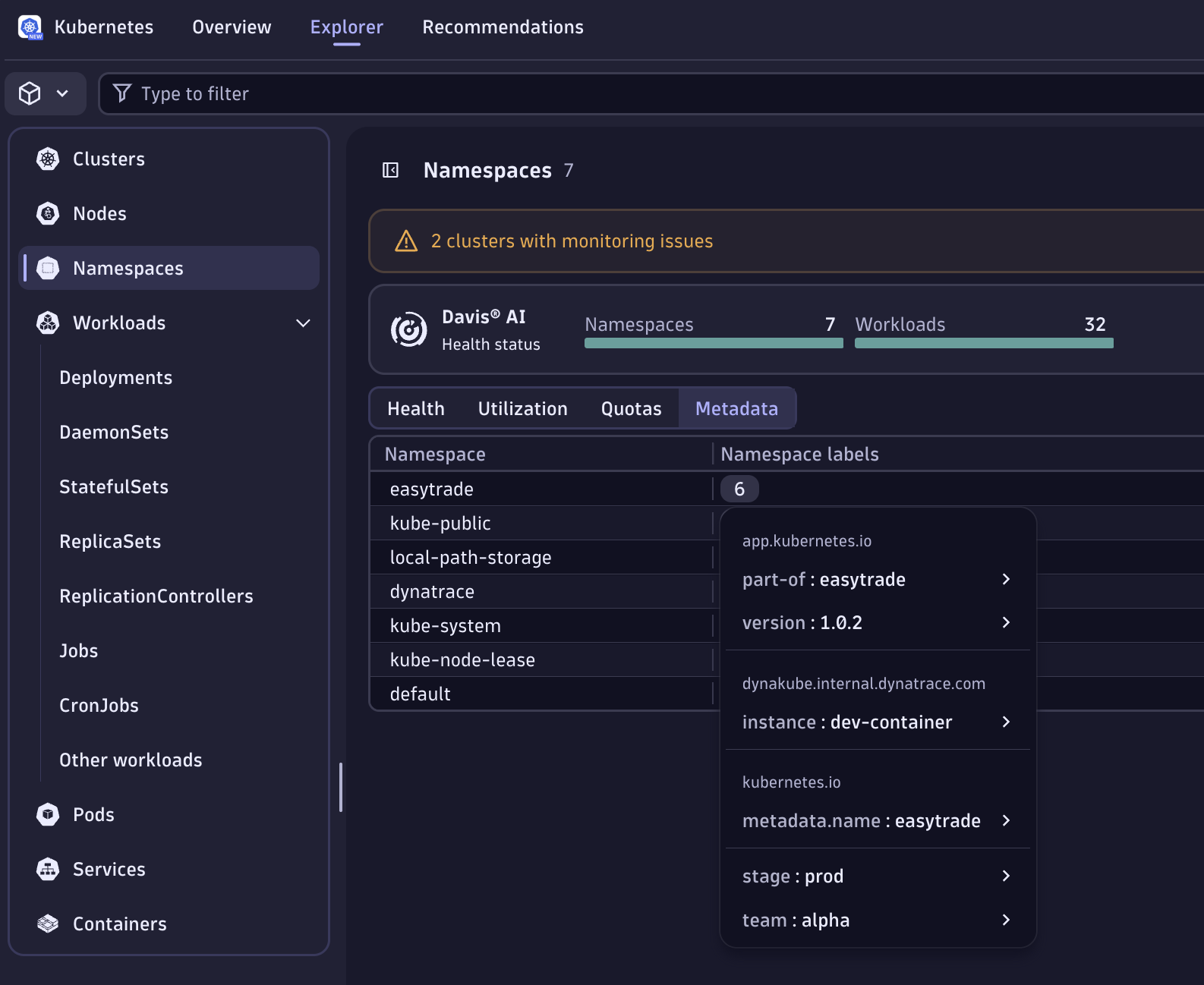

1. In the Kubernetes app in Dynatrace, review the customer’s standards for labels and annotations.



   Tip

   Treat this as a pre-investigation: propose a mapping to Dynatrace values, then validate and get approval from the customer before proceeding.

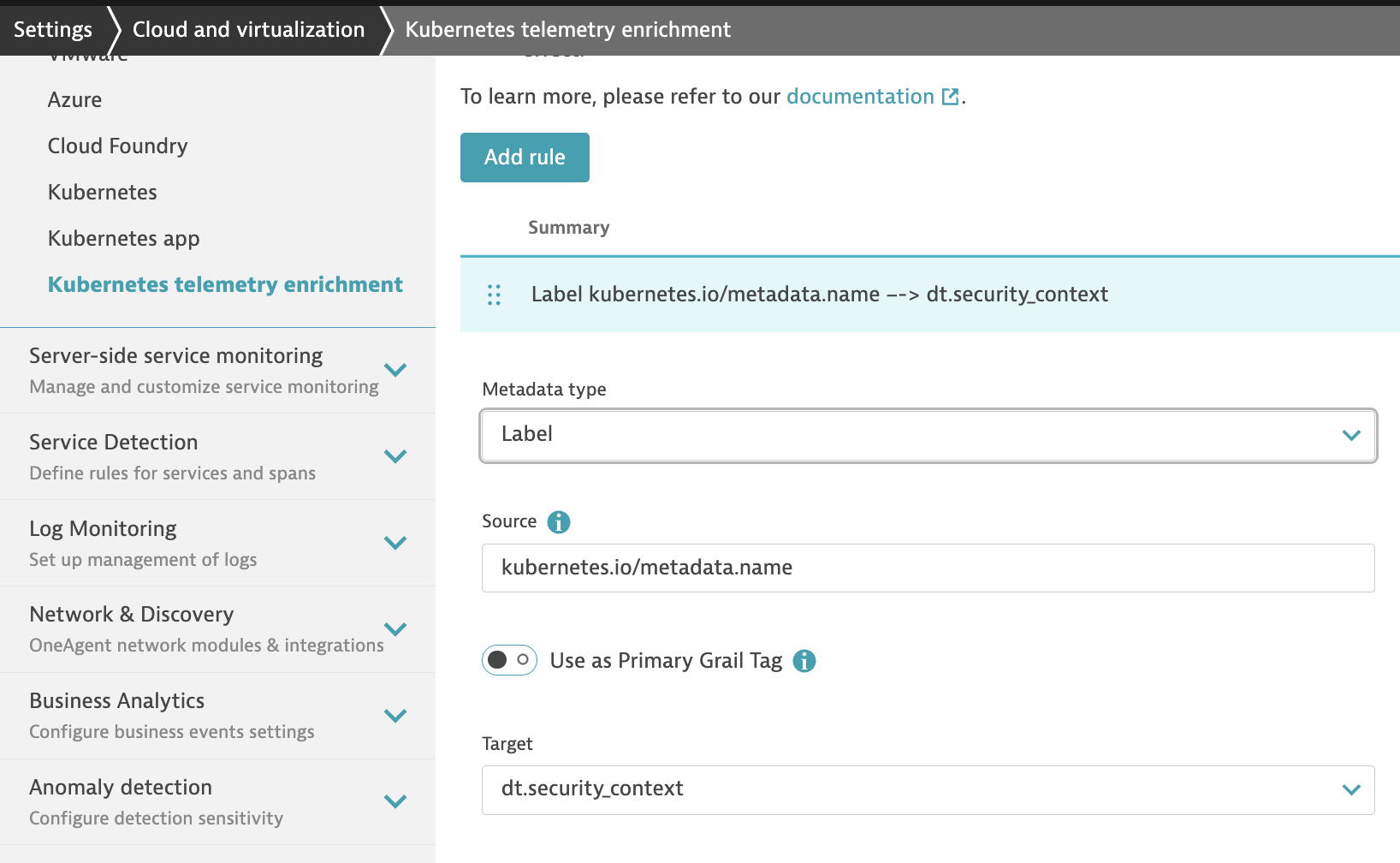

2. Use the label kubernetes.io/metadata.name as the value for dt.security_context.



   Warning

   Select label, not annotation.

Debugging

The Dynatrace Operator mutates pods in the namespace, adding dt.security_context in this case.

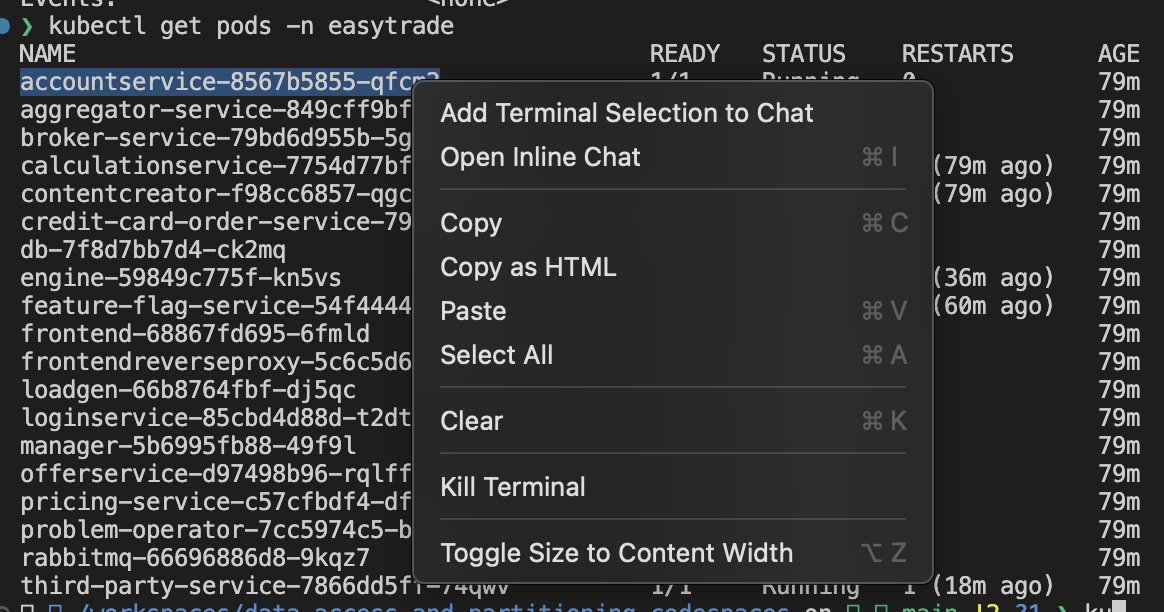

1. Run kubectl get pods -n easytrade in your cluster, find the accountservice pod, and copy its name.

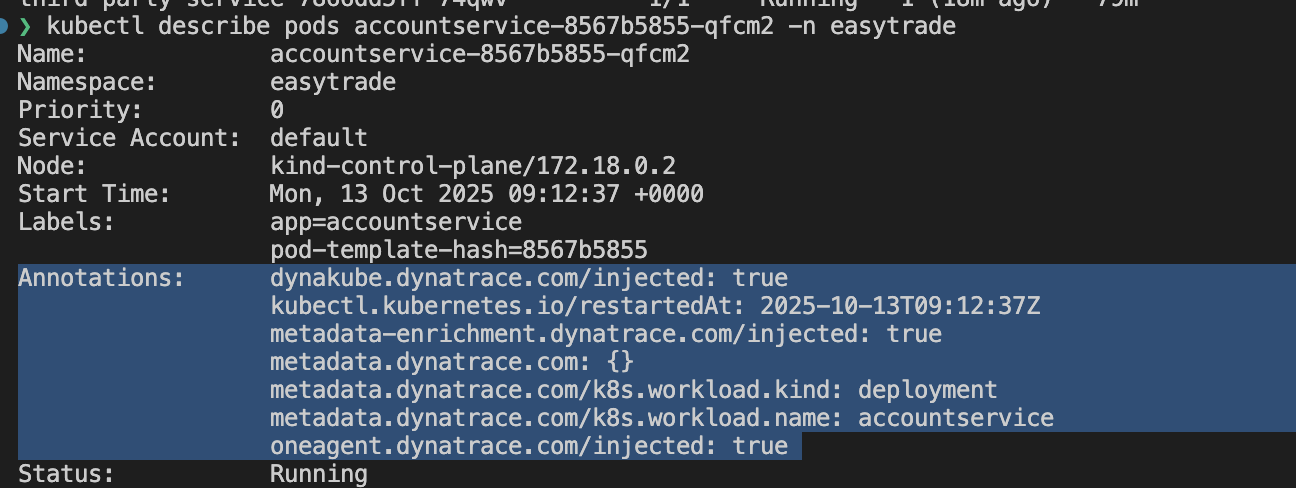

2. Describe the pod: kubectl describe pod <accountservice-pod-name> -n easytrade



   If you don’t see dt.security_context, the pod was created before the rule applied. Restart it so the Operator can mutate the spec.

3. Restart the accountservice deployment:

   kubectl -n easytrade rollout restart deployment/accountservice

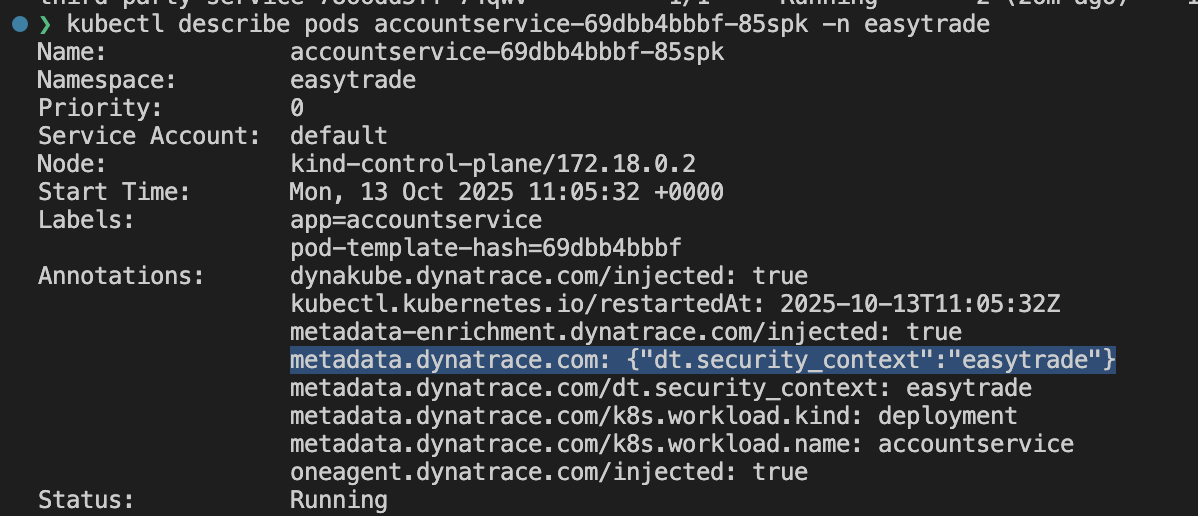

4. Check the new pod (repeat steps 8 & 9). You should now see dt.security_context in the pod definition.



   Warning

   After creating or modifying rules, allow up to 45 minutes for changes to take effect (but it’s usually faster). Repeat steps 8 & 9 until dt.security_context appears in the pod definition.

5. Return to the Enrichment Overview Notebook and re-check the status. Grab a span.id, paste it in the query, and confirm the workload name.

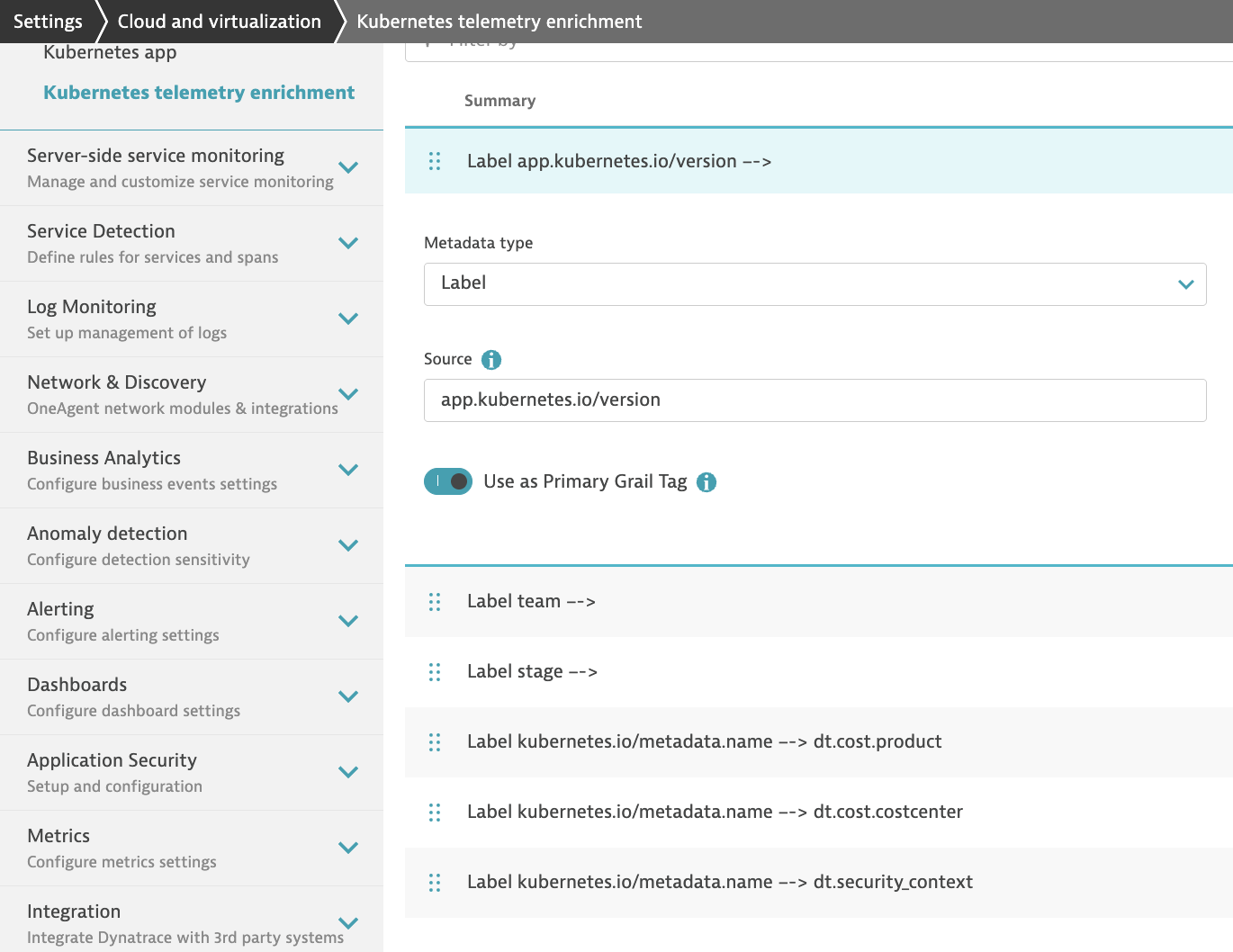

6. Configure dt.cost.costcenter and dt.cost.product, plus any other attributes the Easytrade team needs.



   ! note

   For those other attributes (team, stage, app.kubernetes.io/version), as they are not going to be connected to any of the main ones (security context & costs), you can mark them as Primary Grail Tags. We will see this later...


7. Restart all deployments in the easytrade namespace:

   for d in $(kubectl -n easytrade get deploy -o name); do
     kubectl -n easytrade rollout restart "$d"
   done

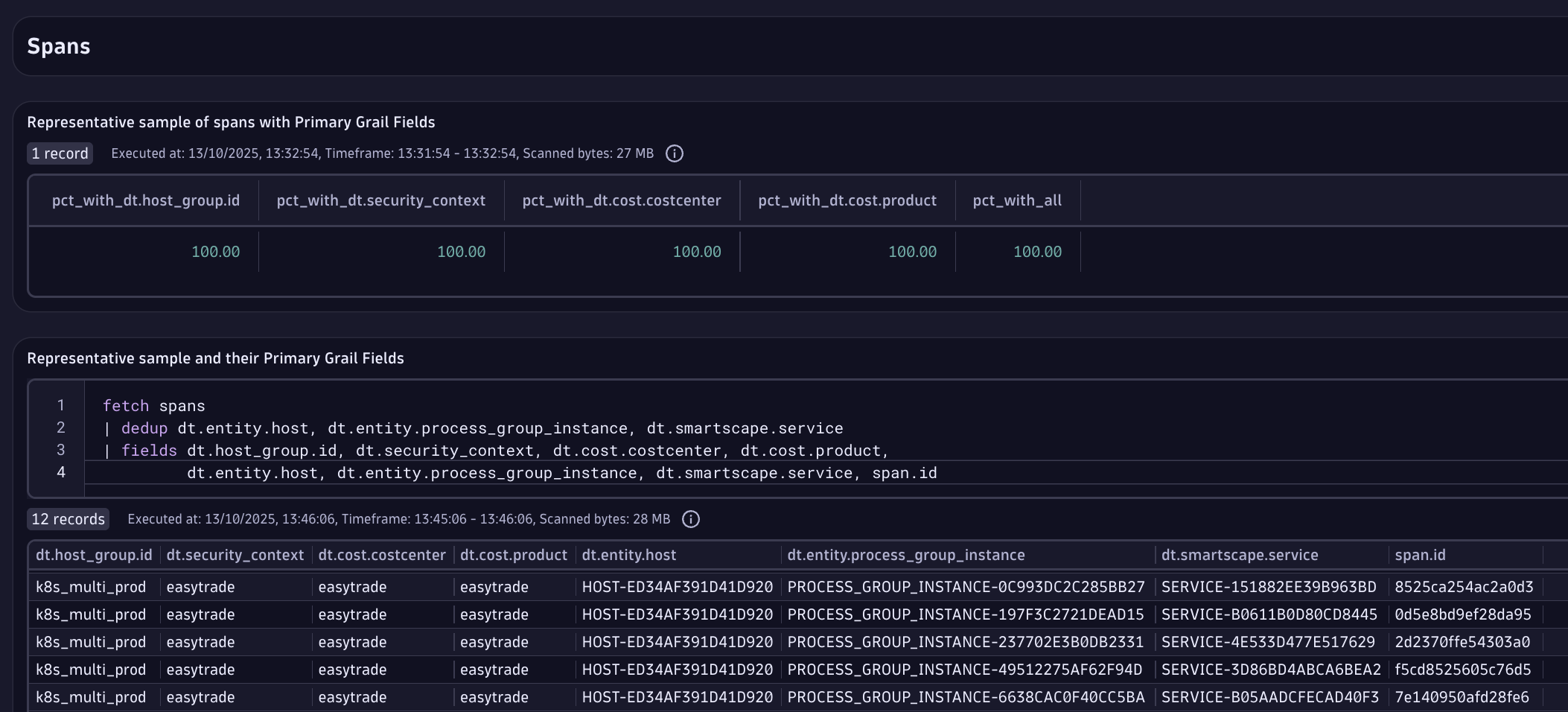

8. Re-check the Enrichment Overview Notebook.



   Also check logs. Not all logs may be enriched (e.g., cluster-level logs that infra teams care about).

Primary Grail Tags

As you may have seen, we've also added other attributes that could be extremely useful for the customer, such as the apps version.

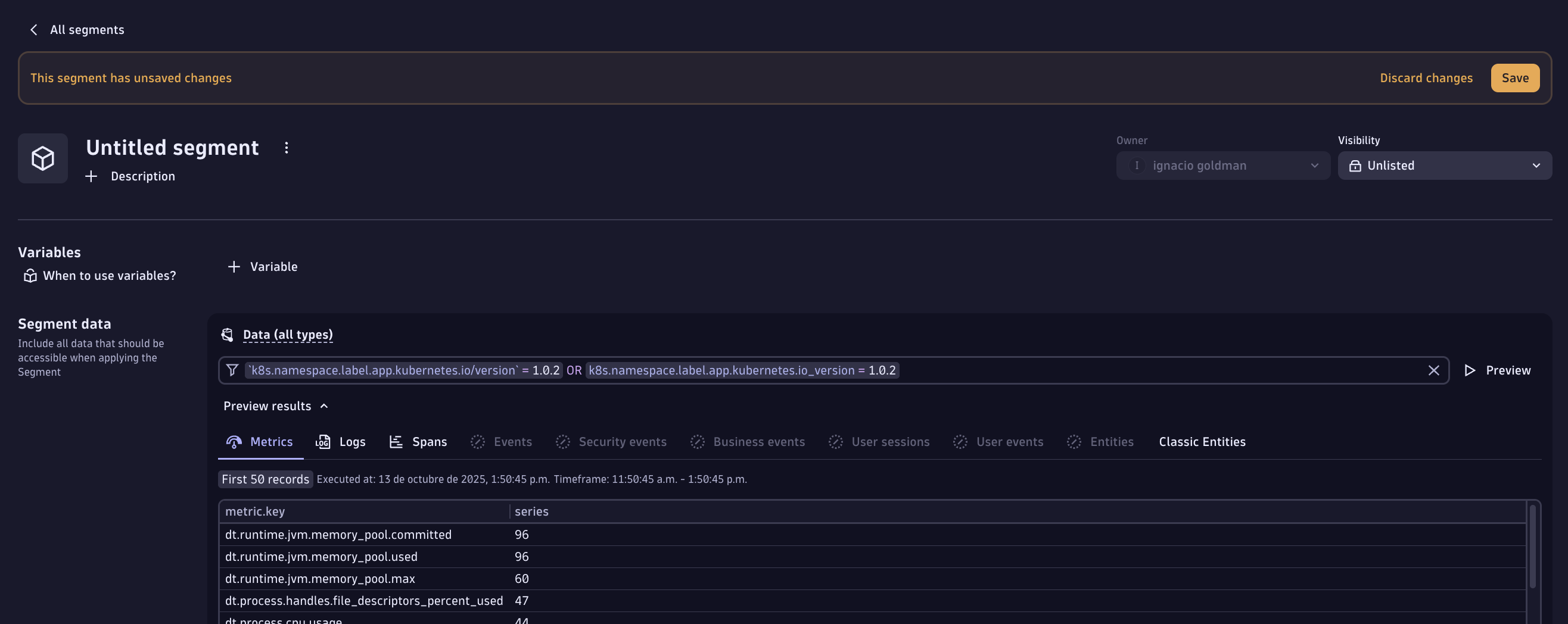

1. The customer could create visualization of metrics, or exception maps comparing different version of their apps



   Tip

   Consider also Primary Grail Tags, apart from the default enrichment of dt.security.context, dt.cost.costcenter and dt.cost.product. Think of the dimesions defined previously, or any relevant metadata that the customer could use in Dynatrace

[Approach 3] Pod-level granularity

Context: loginservice is the only Easytrade microservice not managed by the team we’re helping with the PoC. There’s a request to keep its Data Access separate.

Namespace-level enrichment only goes so far. To target a single workload, we’ll set the attributes at the pod level (e.g., dt.security_context = loginservice).

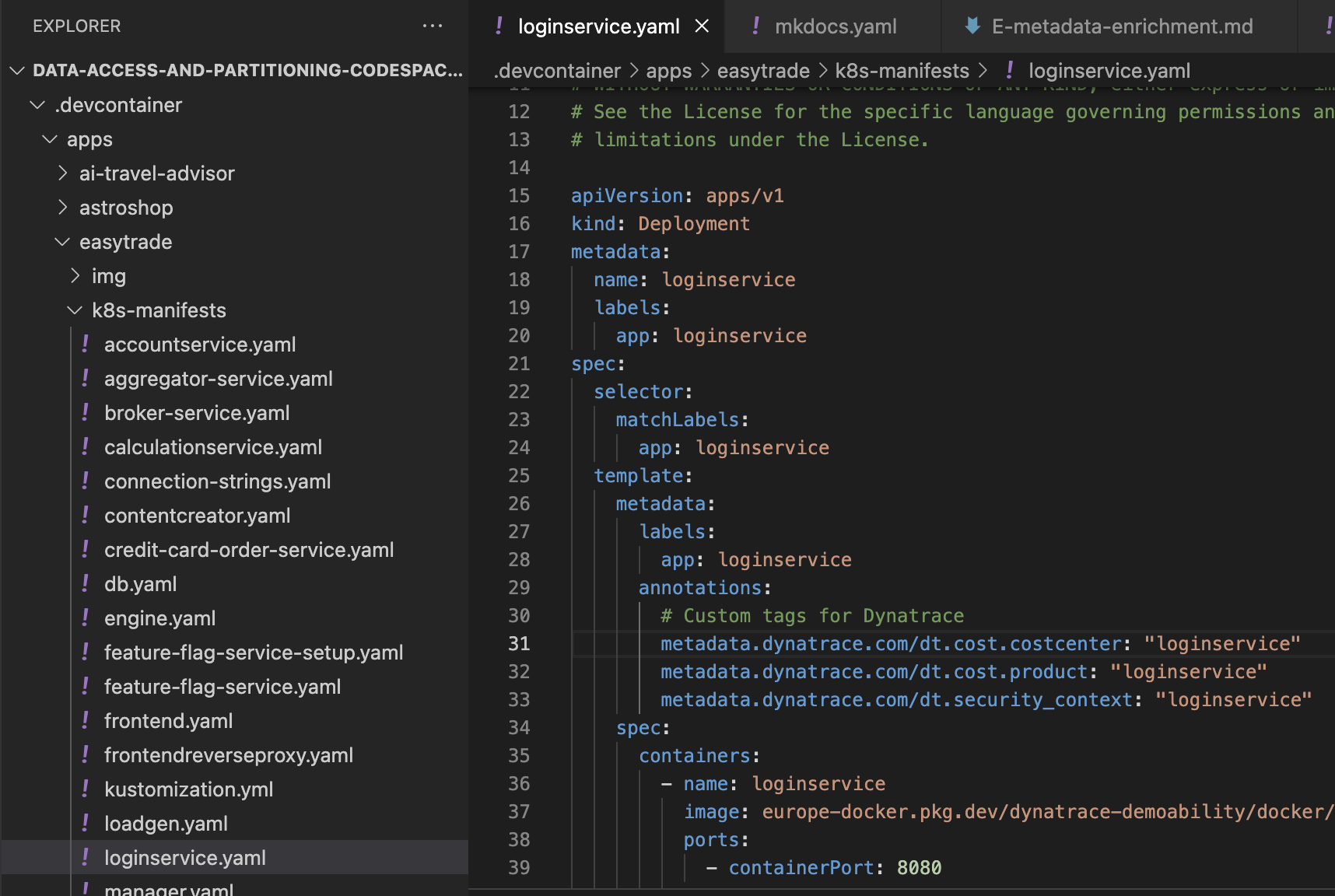

1. In your IDE, open
   .devcontainer/apps/easytrade/k8s-manifests/loginservice.yaml and add these pod template annotations:

   annotations:
     # Custom tags for Dynatrace
     metadata.dynatrace.com/dt.cost.costcenter: "loginservice"
     metadata.dynatrace.com/dt.cost.product: "loginservice"
     metadata.dynatrace.com/dt.security_context: "loginservice"




2. Apply the manifest:

   kubectl -n easytrade apply -f .devcontainer/apps/easytrade/k8s-manifests/loginservice.yaml

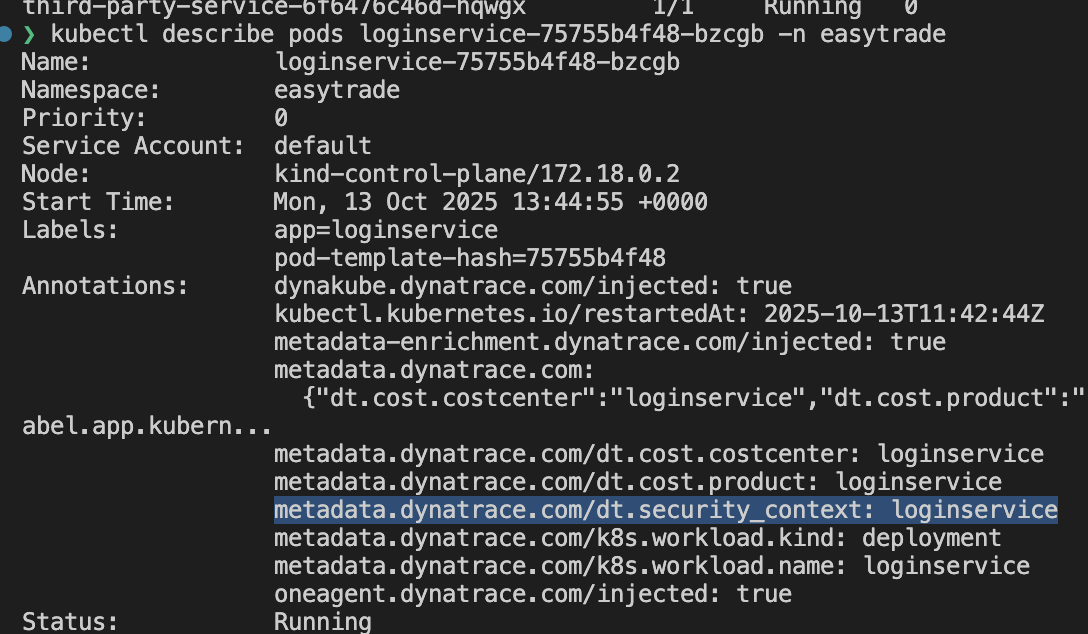

3. Verify new pods have the updated fields:

   kubectl get pods -n easytrade
   kubectl describe pod <loginservice-pod-name> -n easytrade

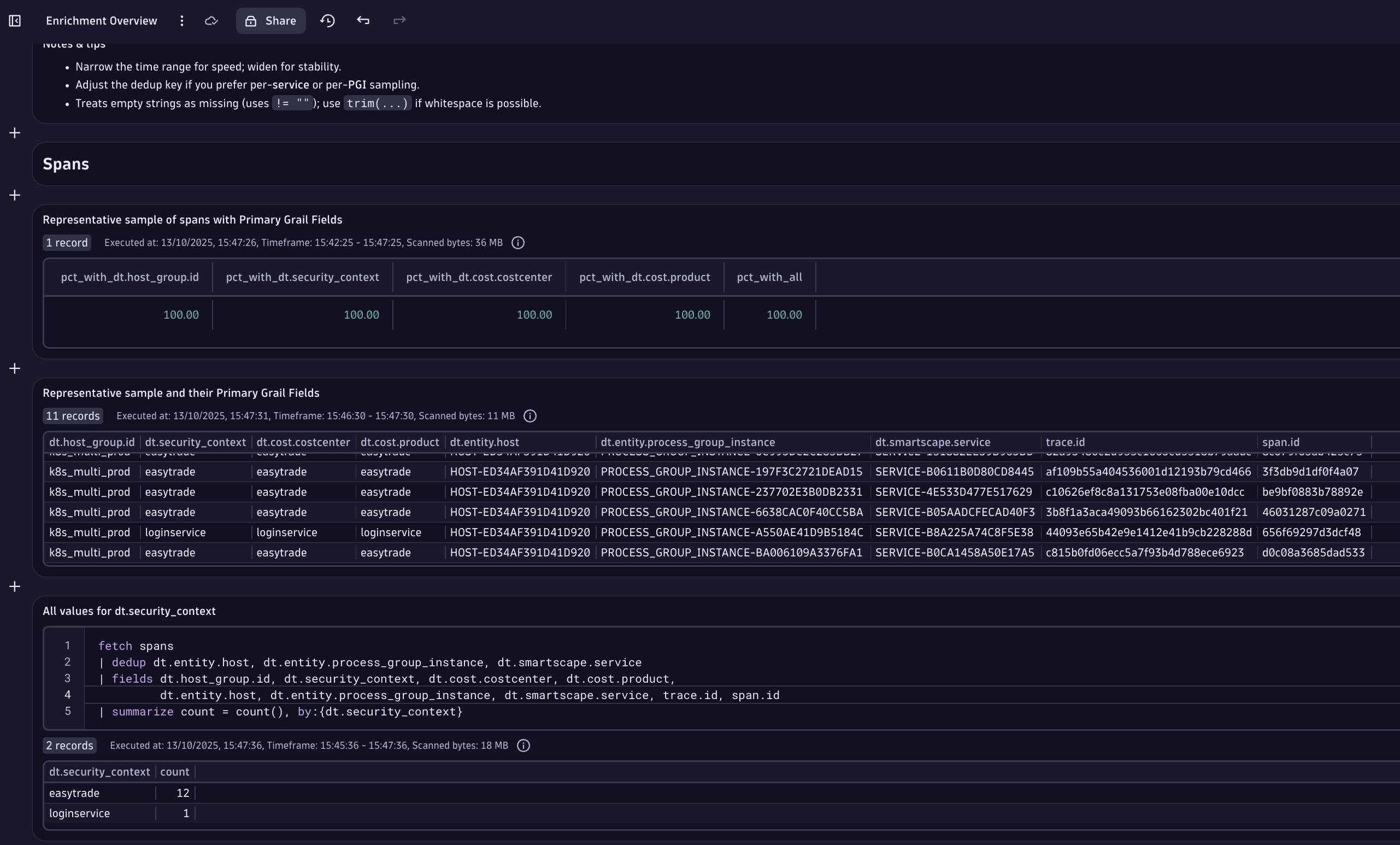

4. Check the Enrichment dashboard again.



🌱 Closing Up

Lab Recap & Next Steps

• You identified Primary Grail Fields and why they matter for tenant-wide controls.
• You measured metadata coverage on a representative sample (spans/logs) and tracked % with dt.security_context, dt.cost.costcenter, dt.cost.product, dt.host_group.id.
• You configured K8s enrichment (namespace labels → PGFs) and restarted workloads so pods were mutated with the new fields.
• You handled an exception at pod level (loginservice) by adding PGF annotations in its manifest and applying the change.
• You validated before/after in the Enrichment notebook and noted gaps (e.g., some cluster-level logs).

What this enables... - dt.security_context is now your anchor dimension to define groups, policies, and access boundaries for least-privilege access. - dt.cost.costcenter & dt.cost.product are ready for cost allocation and reporting.

Resources

Dynatrace Official Documentation: - DT Doc | Global Field Reference - DT Doc | K8s Enrichment

D1 CoE: - D1 CoE | What a Primary Grail Fields is? - D1 CoE | Enriching by Technology - D1 CoE | K8s Enrichment

We've meet the Enrichment requirements for a K8s environment. How would this work for a Standard OA, or a Cloud environment. Check the following resources in the CoE page: - D1 CoE | Enrichment of Standard OneAgent deployment - D1 CoE | Enrichment for Cloud, WIP... contact the CoE in case further information is needed
